Supercloser Polybag-in-box DeCuffer Closers
OKI is a world leader in Polybag-in Box Decuffer Folder Closers and Heat Seal Closers, around which we build complete Bulk Packing Line Solutions to meet the extensive needs of the market in numerous industries and applications. Bag closer machines keep employees from having to complete a repetitive and strenuous task for hours on end. When it comes to automatic packaging solutions, OK International helps businesses establish their packaging systems from start to finish. The final step of this process can be done efficiently by our industrial bag closer machines; it’s perfect for ensuring that all of your packages are sealed safely and ready to ship to waiting customers.SUPERCLOSER SC300
Polybag-in-box Decuffer Heat Seal Closer
The Supercloser SC300 automatically uncuffs the bag in a box clear of the case flap, stretches the bag, or re-folds gussets and tamps out excess air and heat seals the bag to protect the product. These machines are available in several configurations including servo versions for higher speeds, air evacuation and gas flushing for extended product life.
SUPERCLOSER SC400
Polybag-in-Box Decuffer Folder Closer
The Supercloser SC400 automatically un-cuffs a filled polybag-in-box clear of the case flaps, opens the side flaps and folds the polybag into a neat two-way fold within the dimensions of the case to protect the product. These heavy-duty machines are available in several sizes for a wide range of case sizes.
SUPERCLOSER SC410
Polybag-in-Box Decuffer Folder & Top Taper
The Supercloser SC410 automatically un-cuffs a filled polybag-in-box clear of the case flaps. The SC410 opens the side flaps, folds the bag in a neat two-way fold to protect the filled product, closes the flaps and tapes the top of the cases. The machine has a clean compact design that is suitable for demanding applications in food and non-food.

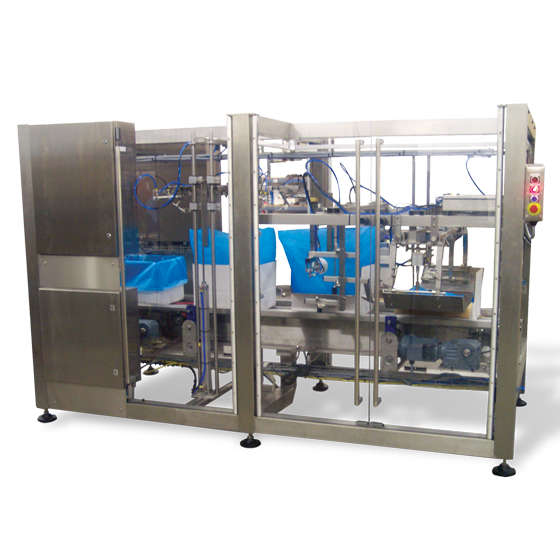

Supercloser SC400
Polybag-in-Box Decuffer Folder Closer
The Supercloser SC400 automatically un-cuffs a filled polybag-in-box clear of the case flaps, opens the side flaps and folds the polybag into a neat two-way fold within the dimensions of the case to protect the product. These heavy-duty machines are available in several sizes for a wide range of case sizes.
Features | Benefits |
 Stainless steel finish. | Clean and durable, maintains hygiene. |
| Heavy duty indexing conveyor. | Highest speed at low maintenance. |
| In-feed gate. | Separates cases for automatic operation. |
| Opens the side flaps of the cases. | Most positive folding process. |
| Full interlocked guarding. | Operator safety and OSHA compliance. |
TECHNICAL SPECIFICATIONS | |
Case range SC400 min.: 8′ (2.4 meter) machine max.: | 10.00” x 8.00” x 6.00” (L x W x H) min. / 250mm x 200mm x 150mm (L x W x H) min. 16.00” x 14.00” 16.00″ x2.00” (L x W x H) max. |
10′ (3 meter) machine max.: 10′ (3 meter) machine optional: | 20.00” x 14.00” x 16.00” (L x W x H) max. / 500mm x 350mm x 400mm (L x W x H) max. 24.00” x 16.00” x 16.00” (L x W x H) max. |
| Speed: | Up to 10 – 15 cases per min. depending on case size |
| Bag materials: | All standard polyethylene films (HDPE, LDPE, LLDPE, co-extrusions) |
| Bag gauges: | 1.0 – 4.0 mil (25-100 microns) depending on material. |
| Electric: | 480V, 3 Phase, 60Hz standard (or to local requirement). 400V, 3 Phase, 50Hz standard (or to local requirement). |
| Controls: | Allen Bradley or Siemens with operator display unit. |
| Pneumatic: | 80-100 psi (6 – 8 bar), 1/2” supply. Clean, dry and unlubricated air. |
| Finish; | Stainless steel. |
| Machine Handling: | Right to left or left to right. |

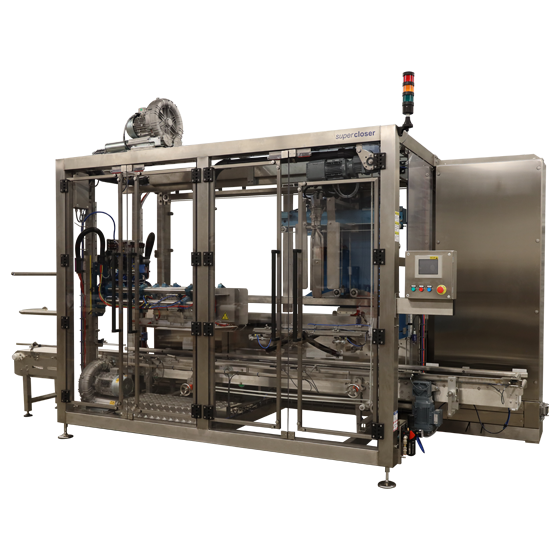

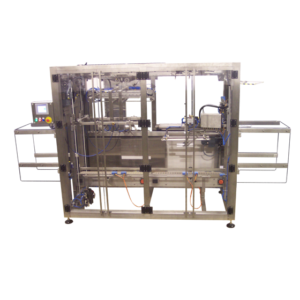

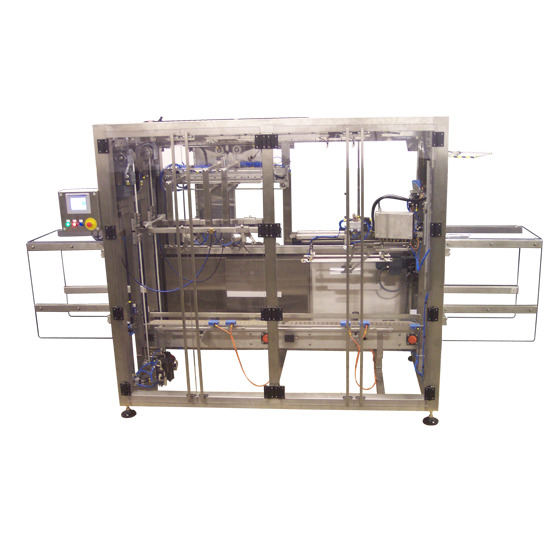

Supercloser SC300
Polybag-in-box Decuffer Heat Seal Closer
The Supercloser SC300 automatically uncuffs the bag in a box clear of the case flap, stretches the bag, or re-folds gussets and tamps out excess air and heat seals the bag to protect the product. These machines are available in several configurations including servo versions for higher speeds, air evacuation and gas flushing for extended product life.
Features | Benefits |
| Stainless steel finish. | Clean & durable. Maintains hygiene. |
| Tamps out excess air | Sealed bag fits the volume of the case. |
| Heavy duty design. | Suitable for demanding applications at low maintenance. |
| Fully interlocking guarding. | Operator safety & OSHA compliant. |
TECHNICAL SPECIFICATIONS | |
| Case range: | 10.00” x 8.00” x 4.00” (L x W x H) min. 24.00” x 18.00” x 20.00” (L x W x H) max. |
| Speed: | Up to 10 cases per minute (standard machine). Up to 15 cases per minute (servo machine). |
| Bag materials: | 1.25 – 3.0 mils (30 – 75 micron) standard polyethylene films. |
| Voltage: | 480V, 60 Hz, 3 Phase, or to local requirement. 400V, 50 Hz, 3 Phase, or to local requirement. |
| Control Voltage: | 24V DC. |
| Air requirements: | 80-100 psi (6 – 8 bar), 1/2” supply. Clean, dry and unlubricated air. |
| Finish: | Stainless steel frame covers, contact parts and electrical enclosure. Internal components anodized aluminum, stainless steel and plated. |
| Machine Handling: | Right to left or left to right. |

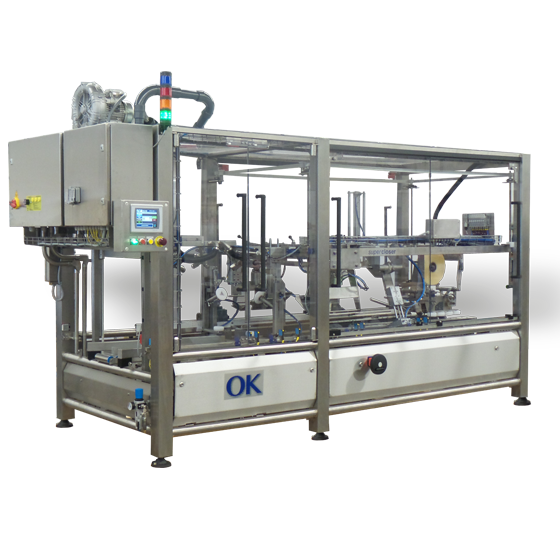

Supercloser SC410
Polybag-in-Box Decuffer Folder & Top Taper
The Supercloser SC410 automatically un-cuffs a filled polybag-in-box clear of the case flaps. The SC410 opens the side flaps, folds the bag in a neat two-way fold to protect the filled product, closes the flaps and tapes the top of the cases. The machine has a clean compact design that is suitable for demanding applications in food and non-food applications.
Features | Benefits |
| Stainless steel finish. | Clean and durable, maintains hygiene. |
| Heavy duty conveyor system. | Highest speed and low maintenance. |
| Single frame, in line design. | Ease of setup, training and operation. |
| Full interlocked guarding. | Operator safety and OSHA compliance. |
TECHNICAL SPECIFICATIONS | |
| Case range: | 10.00″ x 8.00″ x 6.00″ (L x W x H) min. 250mm x 200mm x 150mm” (L x W x H) min. 20.00″ x 16.00″ x 20.00″ (L x W x H) max. 500mm x 400mm x 500mm (L x W x H) max. |
| Speed: | Up to 12 cases per minute. |
| Bag materials: | All standard polyethylene films (HDPE, LDPE, LLDPE, co-extrusions) |
| Bag Gauges: | 1.0 – 4.0 mil (25-100 micron) depending on material. |
| Tape Applicator: | OK-55 high quality taping head with open tape feed path, suitable for all standard 2“ (50mm) wide pressure sensitive tapes up to 14” (350mm) roll diameter. OK-75 3″ (75mm) taping head optional. |
| Voltages: | 480V, 3 Phase, 60Hz. Other voltages to requirement. 400V, 3 Phase, 50Hz. Other voltages to requirement. |
| Pneumatic: | 80-100 psi (6-8 bar), 1/2” supply. Clean, dry and unlubricated air. |
| Machine Handling: | Right to left or left to right to requirement. |
See Our Machines in Action
Supercloser SC300 Polybag-in-box Decuffer Heat Seal Closer
Supercloser SC410 Polybag-in-box Decuffer Folder & Top Taper
Supercloser SC400 Polybag-in-box Decuffer Folder Closer
Options
Customize your machine
- Smaller or Larger Case Sizes
- Touch Screen Display Unit
- OK 75 Taping Head for 3”/75mm
Wide Tape (SC410) - Higher Speed
Get in Touch with a Representative
We’re here to help you customize your machine.
